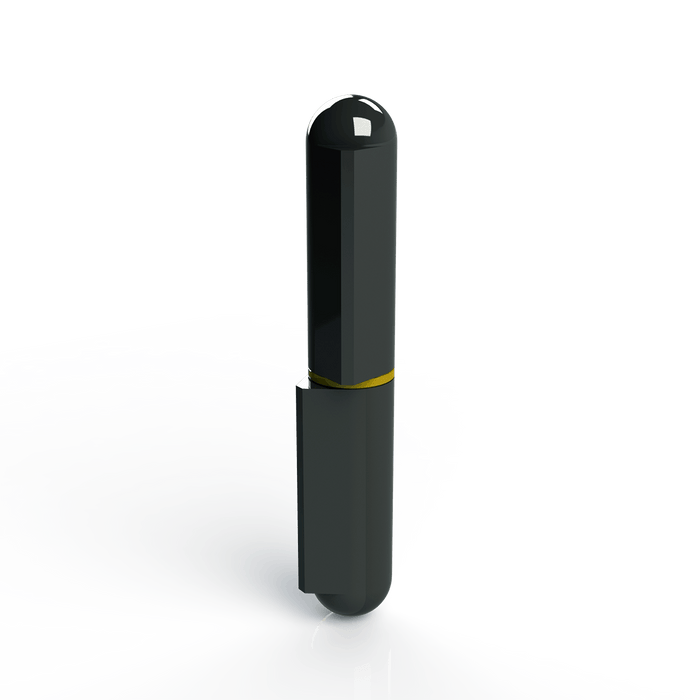

4-inch Steel Weld-On Hinge with Brass Pin
4-inch Steel Weld-On Hinge with Brass Pin
Regular price
$3.45 USD
Regular price
$4.66 USD
Sale price
$3.45 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Provides a compact welded pivot for steel doors, gates, panels, cabinets, enclosures, and fabricated equipment, with a 350 lbs load capacity listed by TCH for demanding industrial installations.
- Designed for welded assemblies where drilled mounting holes and separate fasteners are not desired. Suitable for trailer doors, gates, tool cabinets, industrial enclosures, access panels, and fabricated machinery.
- Measures approximately 3-15/16-inch [100mm] high with a 5/8-inch [16mm] diameter body. Cylindrical construction provides a compact hinge profile for welded steel assemblies.
- Steel hinge body uses a brass pin and brass washer at the pivot. The combination supports smooth hinge movement while providing a straightforward weld-on construction for industrial fabrication.
- Cross-references to FBP-100, a recognized weld-on hinge configuration. One hinge is supplied per package, giving fabricators a standardized size for production, maintenance, replacement, and repair work.
PDF Drawing
DXF File
